iOS 图片部分模糊，类似于美图秀秀

立即下载用AI写一个

发布时间：2018-10-24

5人 | 浏览：3054次 | 收藏 |

技术：Object-C

运行环境：mac; Xcode 10.0 + ; iOS 9.0 +

概述

图像处理，只显示图片指定形状区域的内容，剩余部分高斯模糊，模糊的程度可以实时改变。支持移动，缩放手势。支持自定义。

详细

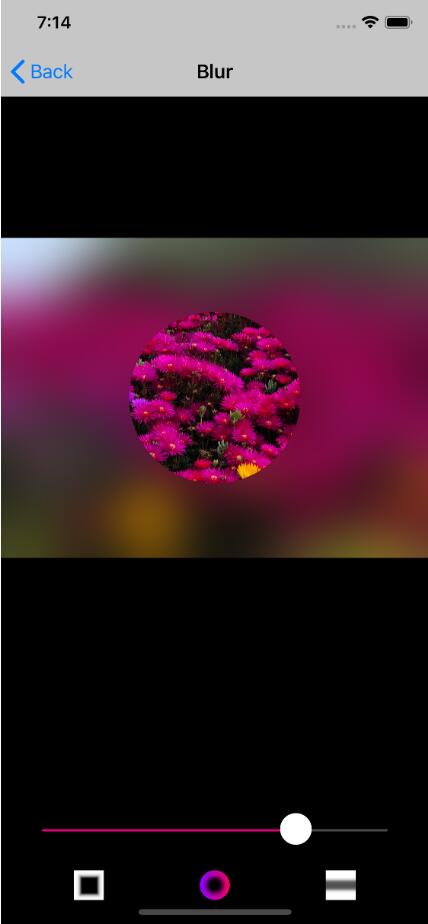

### 演示效果
> 演示效果

![](/contentImages/image/20181023/akqeerJonmKrOpmW3Xm.jpg)

### 代码结构

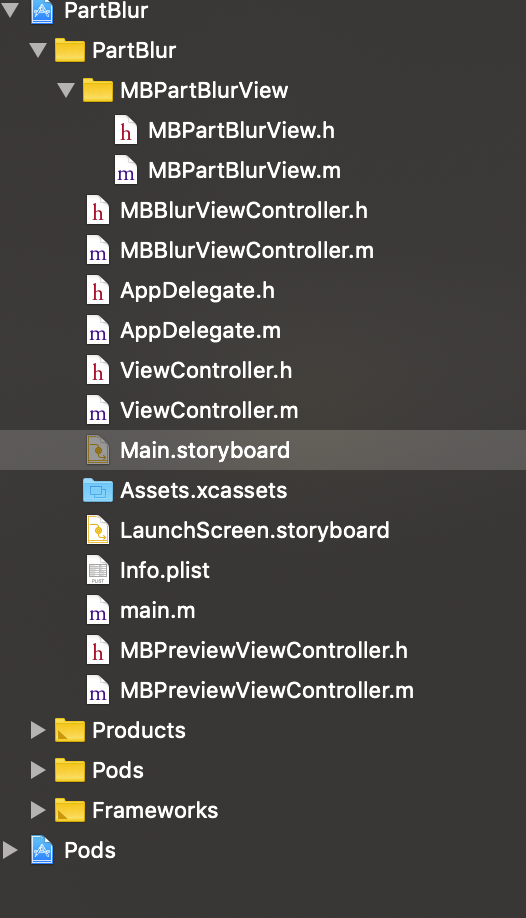

>项目结构截图如下：

![](/contentImages/image/20181022/YIiUYqXoIFbKY3fLKkW.png)

该模块的核心源码部分为 MBPartBlurView，要放到自己的工程中，直接把该目录copy进去。剩余部分是测试用的。

### 使用介绍
> 使用方法

头文件 MBPartBlurView.h 中的注释很详细，使用起来也很简单，目前支持三种形式的图形，圆形、正方形和长方形。

@interface MBPartBlurView : UIView

    /**
     * 原始图片
     */
    @property (nonatomic, strong) UIImage *rawImage;

    /**
     * 处理完的图片
     */
    @property (nonatomic, strong, readonly) UIImage *currentImage;

    @property (nonatomic, assign) CGFloat blurRadius;

    /**
     * 不进行blur的区域
     */
    @property (nonatomic, assign) CGRect excludeBlurArea;

    /**
     * 不进行blur的区域是否是圆形 (目前只支持正方形)
     */
    @property (nonatomic, assign) BOOL excludeAreaCircle;

    @end

###  程序实现
局部模糊的实现
局部模糊实际上是两张图片叠加在一起的效果，底部是一张全部模糊的图片，顶部是一张未经过模糊的图片。对顶部图片加上mask，然后贴在底部图上。

a. 底部的图片放在 imageView 的 layer 上。顶部图片放在 rawImageLayer 上。
maskLayer 就是遮罩层，作为 rawImageLayer 的遮罩。他们分别由以下三个属性保持

@property (nonatomic, strong) UIImageView *imageView;
	@property (nonatomic, strong) CALayer *rawImageLayer;
	@property (nonatomic, strong) CAShapeLayer *maskLayer;

b. 初始化的过程。图层一目了然

- (void)commonInit
	{
    	[self.imageView 	addGestureRecognizer:self.tapGesture];
	    [self.imageView addGestureRecognizer:self.pinchGesture];
    	[self.brushView addGestureRecognizer:self.panGesture];
	    [self addSubview:self.imageView];
	    [self.imageView.layer addSublayer:self.rawImageLayer];
    	[self.imageView addSubview:self.brushView];
	    self.rawImageLayer.mask = self.maskLayer;
	    [self setExcludeAreaCircle:true];
	    [self setExcludeBlurArea:CGRectMake(100, 100, 100, 100)];
	    [self showBrush:false];
	}

#### 1. 图片模糊算法
算法用的是业界广泛使用的[高斯模糊](http://www.ruanyifeng.com/blog/2012/11/gaussian_blur.html "高斯模糊")。

(UIImage *)blurryImage:(UIImage *)image withBlurLevel:(CGFloat)blur
        {
        NSData *imageData = UIImageJPEGRepresentation(image, 1); // convert to jpeg
        UIImage* destImage = [UIImage imageWithData:imageData];
        int boxSize = (int)(blur * 100);
        if (blur > 0.5) {
            boxSize = (int)(blur * 100) + 50;
        }else if (blur <= 0.5) {
            boxSize = (int)(blur * 100);
        }
        boxSize = boxSize - (boxSize % 2) + 1;
        CGImageRef img = destImage.CGImage;
        vImage_Buffer inBuffer, outBuffer;
        vImage_Error error;
        void *pixelBuffer;
        //create vImage_Buffer with data from CGImageRef
        CGDataProviderRef inProvider = CGImageGetDataProvider(img);
        CFDataRef inBitmapData = CGDataProviderCopyData(inProvider);
        inBuffer.width = CGImageGetWidth(img);
        inBuffer.height = CGImageGetHeight(img);
        inBuffer.rowBytes = CGImageGetBytesPerRow(img);
        inBuffer.data = (void*)CFDataGetBytePtr(inBitmapData);
        //create vImage_Buffer for output
        pixelBuffer = malloc(CGImageGetBytesPerRow(img) * CGImageGetHeight(img));
        if(pixelBuffer == NULL)
        NSLog(@"No pixelbuffer");
        outBuffer.data = pixelBuffer;
        outBuffer.width = CGImageGetWidth(img);
        outBuffer.height = CGImageGetHeight(img);
        outBuffer.rowBytes = CGImageGetBytesPerRow(img);
        // Create a third buffer for intermediate processing
        void *pixelBuffer2 = malloc(CGImageGetBytesPerRow(img) * CGImageGetHeight(img));
        vImage_Buffer outBuffer2;
        outBuffer2.data = pixelBuffer2;
        outBuffer2.width = CGImageGetWidth(img);
        outBuffer2.height = CGImageGetHeight(img);
        outBuffer2.rowBytes = CGImageGetBytesPerRow(img);
        //perform convolution
        error = vImageBoxConvolve_ARGB8888(&inBuffer, &outBuffer2, NULL, 0, 0, boxSize, boxSize, NULL, kvImageEdgeExtend);
        if (error) {
            NSLog(@"error from convolution %ld", error);
        }
        error = vImageBoxConvolve_ARGB8888(&outBuffer2, &inBuffer, NULL, 0, 0, boxSize, boxSize, NULL, kvImageEdgeExtend);
        if (error) {
            NSLog(@"error from convolution %ld", error);
        }
        error = vImageBoxConvolve_ARGB8888(&inBuffer, &outBuffer, NULL, 0, 0, boxSize, boxSize, NULL, kvImageEdgeExtend);
        if (error) {
            NSLog(@"error from convolution %ld", error);
        }
        CGColorSpaceRef colorSpace = CGColorSpaceCreateDeviceRGB();
        CGContextRef ctx = CGBitmapContextCreate(outBuffer.data,
                                                 outBuffer.width,
                                                 outBuffer.height,
                                                 8,
                                                 outBuffer.rowBytes,
                                                 colorSpace,
                                                 (CGBitmapInfo)kCGImageAlphaNoneSkipLast);
        CGImageRef imageRef = CGBitmapContextCreateImage (ctx);
        UIImage *returnImage = [UIImage imageWithCGImage:imageRef];
        //clean up
        CGContextRelease(ctx);
        CGColorSpaceRelease(colorSpace);
        free(pixelBuffer);
        free(pixelBuffer2);
        CFRelease(inBitmapData);
        CGImageRelease(imageRef);
        return returnImage;
	    }

#### 2.手势处理

主要是实现缩放的手势，在处理 UIPanGestureRecognizer 的函数- `(void)handlePinch:(UIPinchGestureRecognizer *)gestureRecognizer` 中，当 state 为 UIGestureRecognizerStateChanged 时候调用核心缩放函数` - (void)scaleMask:(CGFloat)scale`，代码具体如下：

- (void)scaleMask:(CGFloat)scale
    {
        CGFloat mS = MIN(self.imageView.frame.size.width/self.brushView.frame.size.width, self.imageView.frame.size.height/self.brushView.frame.size.height);
        CGFloat s = MIN(scale, mS);
        [CATransaction setDisableActions:YES];
        CGAffineTransform zoomTransform = CGAffineTransformScale(self.brushView.layer.affineTransform, s, s);
        self.brushView.layer.affineTransform = zoomTransform;
        zoomTransform = CGAffineTransformScale(self.maskLayer.affineTransform, s, s);
        self.maskLayer.affineTransform = zoomTransform;
        [CATransaction setDisableActions:false];
    }

在这个函数中，更新maskLayer 的 affineTransform 就可以扩大或者缩小 mask 的范围。表现出来就是不模糊的区域扩大或者缩小。

#### 3. 处理相机图片自动旋转问题

- (void)setRawImage:(UIImage *)rawImage
  	  {
        UIImage *newImage = [self fixedOrientation:rawImage]; //从相册出来的自带90度旋转
        _rawImage = newImage;
        CGFloat w,h;
        if (newImage.size.width >= newImage.size.height) {
            w = self.frame.size.width;
            h = newImage.size.height/newImage.size.width * w;
        }
        else {
            h = self.frame.size.height;
            w = newImage.size.width/newImage.size.height * h;
        }
        self.imageView.frame = CGRectMake(0.5 *(self.frame.size.width-w), 0.5 *(self.frame.size.height-h), w, h);
        self.rawImageLayer.frame = self.imageView.bounds;
        self.imageView.image = [self blurryImage:newImage withBlurLevel:self.blurRadius];
        self.rawImageLayer.contents = (id)newImage.CGImage;
 	   }

### 补充
暂时没有
[1]: http://www.ruanyifeng.com/blog/2012/11/gaussian_blur.html
